Case Studies of Oil-Free Screw Air Compressors in the Food Processing Industry

Why Food Plants Require Oil-Free Screw Air Compressors

Compressed air acts as invisible raw material in food manufacturing. Oil residue from standard lubricated compressors causes product spoilage, off-flavors, failed microbial tests and costly product recalls. Global food regulators (FD A, HACCP) mandate zero-oil air for direct food contact workflows (filling, fermentation, ingredient mixing).

Core Technical Advantages

ISO 8573-1 Class 0 Zero-Oil Output: No lubricant used during rotor compression, eliminating oil pollution at the source. Class 1 units suit indirect packaging cleaning only.
Food-Grade Build: All air-contact parts use 304 stainless steel, compliant with FDA 21 CFR 177.1520; smooth surfaces simplify disinfection.
Ultra-Stable Pressure: Pressure fluctuation ≤0.02MPa, eliminating defective bottles, uneven dough and inconsistent packaging.
High Energy Efficiency: Two-stage permanent magnet variable frequency design cuts power use by 24–30% vs old oil-flooded models.
Two Product Lines for Different Scales:
- Oil-free screw: Large/medium factories, high continuous air volume
- Oil-free scroll: Small bakeries, central kitchens, limited space

Global market outlook: Food-dedicated oil-free compressor market will hit 4.5 billion RMB by 2026, CAGR 18.7%, driven by stricter food safety supervision.

Real Industry Application Case Summaries

All cases include measurable quality improvement and energy-saving data for buyer trust & E-E-A-T SEO signals.

2.1 Beverage Manufacturing (2 Core Cases)

Case A: Aluminum Can Factory, Guangdong

Old setup: 4 lubricated compressors, total 810kW, high power & maintenance cost.

Upgrade: 2 × 315kW two-stage dry oil-free screw compressors (610kW total), ISO Class 0.

Results:

Overall energy saving: 24.7% | Annual electricity saved: 1.28 million RMB
Unit count cut from 4 to 2, lower spare part inventory
Intelligent remote monitoring reduces unplanned downtime

Use scenarios: Can stamping, washing, spraying, neck shrinking.

Case B: Large Beverage Filling Line

Original pain: Monthly 2,000 oil-contaminated defective cases; 8% blow molding reject rate; 4-hour daily deep cleaning shutdown.

Solution: Chongqing Roneng food-grade oil-free screw unit + multi-stage filtration (0.1μm filter + activated carbon).

Results:

Defect rate dropped from 8% to 0.1%; bottle error rate -80%
Cleaning time shortened from 4h to 1h; monthly output +12,000 cases
Monthly scrap loss cut by 30,000 RMB

2.2 Dairy Factory Cases

Case A: Domestic Large Dairy Plant

Demand: Zero-oil air for aseptic milk/yogurt filling and fermentation tank control.

Equipment: Leased oil-free screw compressors with adsorption dryers (dew point below -20℃, residual oil <0.001mg/m³).

3-year operation results:

100% qualified microbial tests; consumer complaints -60%
Annual power saving >200,000 RMB
Quarterly filter & sterilization module replacement for long-term clean air

Case B: Muller Dairy (UK) – Heat Recovery Model

Atlas Copco ISO Class 0 oil-free screw compressors with waste heat recycling system.

Key benefits: Recover compression waste heat for factory heating, slash heating bills while maintaining 100% oil-free filling air; faster investment payback.

2.3 Meat Processing & Central Kitchen

Chained catering central kitchen pain points: Oil mist ruins meat flavor, shortens shelf life; humid workshop accelerates equipment corrosion.

Solution: FDA-certified oil-free screw units with PID pressure control (±0.02MPa fluctuation).

Applications: Pneumatic meat marination, utensil drying, range hood high-pressure cleaning.

Outcomes:

100% food hygiene pass rate
Equipment cleaning time -40%; uniform meat seasoning
Eliminates air-caused meat waste

2.4 Baking & Pastry Production

Case A: Jiangsu Large Baking Factory

Equipment: 3 × 55kW Sazhen two-stage variable frequency oil-free screw compressors for dough mixing, packaging, cold storage pneumatics.

Highlights: Built-in food filtration, 30% energy saving.

Results: Uniform dough fermentation, consistent baked goods taste; annual electricity saved >200,000 RMB.

Case B: Commercial Bakery Fermentation Room

Small-scale oil-free scroll compressor setup for dough fermentation temperature control.

Advantages: Compact, low noise, FDA certified with adsorption dryer to avoid dough mildew; shorter fermentation cycles, higher hourly output.

How to Choose Oil-Free Compressors by Factory Scale

3.1 Critical Selection Standards

Air Purity: Direct food contact → ISO 8573-1 Class 0; outer packaging cleaning → Class 1
Material: 304 stainless steel air path + FDA food-grade seals
Pressure stability: Fluctuation ≤0.02MPa with intelligent PID control
Energy: Prioritize two-stage permanent VSD models
Maintainability: Modular, quick-disassembly design (cleaning ≤1 hour)

3.2 Scale-Based Selection Guide

Large Food Plants (Air demand >60m³/min): 200–315kW two-stage oil-free screw, optional waste heat recovery, multi-unit parallel intelligent control
Medium Factories (10–50m³/min): 55–185kW variable frequency oil-free screw
Small Bakeries / Central Kitchens: Compact oil-free scroll compressors; leasing lowers upfront investment

3.3 Must-Match Auxiliary Equipment

Multi-stage filtration: 0.1μm precision filter + activated carbon + sterilization filter
Adsorption dryer: Dew point ≤-20℃ to remove moisture
Central intelligent control cabinet for real-time pressure/temp monitoring

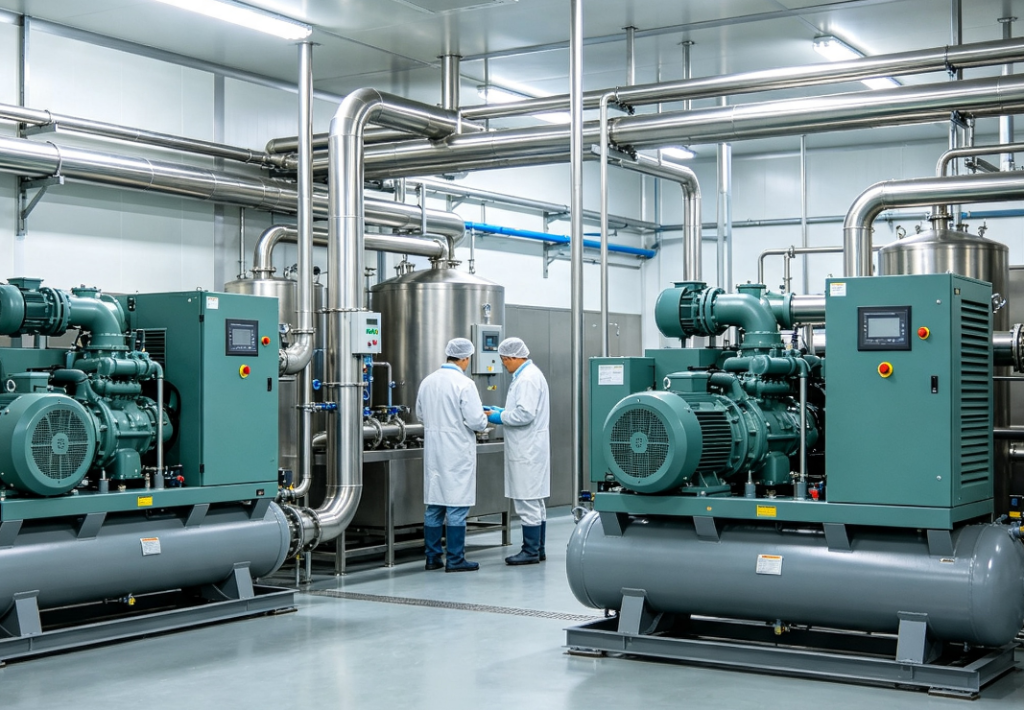

Oil-Free Screw Air Compressors for Food Processing

Investment ROI Breakdown

Cost Composition

Initial hardware cost

315kW large screw: 2–3 million RMB / unit
55kW medium screw: 300,000–500,000 RMB / unit
Small scroll: 100,000–200,000 RMB

Recurring cost: Electricity (80–90% of total running cost), quarterly filter replacement, minor maintenance

Static Payback Period (Electricity Savings Only)

Large can/beverage factories: 3.1–4.7 years
Medium dairy/baking plants: 6–10 years
Small catering/ bakeries: 3–5 years

Hidden extra gains shorten real payback: Less defective goods, fewer production halts, lower compliance risk, extended downstream pneumatic equipment lifespan.

Industry Future Trends

Higher efficiency: Magnetic levitation oil-free screws will enter mass production
Full digitalization: Cloud remote monitoring + AI predictive maintenance as standard
Heat recovery widely adopted for dairy & bakery constant heating demand
Service model upgrade: Equipment leasing & full lifecycle maintenance reduce small factories’ upfront capital pressure
Tighter food air purity global standards, pushing full Class 0 adoption

FAQ

Q1 Why can’t food factories use ordinary lubricated compressors?

A1 Oil mist contaminates food, triggers spoilage and failed safety tests. ISO Class 0 oil-free compressors eliminate oil risks and meet FDA/HACCP rules.

Q2 What is the difference between ISO 8573-1 Class 0 and Class 1?

A2 Class 0 = zero residual oil for filling/fermentation direct contact lines. Class 1 with tiny oil residue only suits outer package cleaning.

Q3 Screw or scroll compressor for my food plant?

A3 High air volume large plants: oil-free screw. Small bakeries/kitchens with limited space: compact oil-free scroll.

Q4 What supporting machines do food-grade oil-free compressors need?

A4 Multi-stage food filter, adsorption dryer (dew point below -20℃), intelligent monitoring control cabinet.

Q5 How fast can I recoup my compressor upgrade investment?

A5 Large factories ~3–4.7 years; medium plants ~6–10 years; small catering ~3–5 years. Savings from scrapped goods will shorten the cycle.

Closing Value Summary

Oil-free screw air compressors deliver three core benefits to food manufacturers:

Food safety: ISO Class 0 sterile air eliminates contamination risks and compliance penalties
Higher output: Stable pressure cuts rejects & production downtime
Low long-term cost: 24–30% power reduction with measurable annual electricity savings

Whether you operate beverage, dairy, meat or baked goods facilities, customized oil-free compressed air systems balance safety, productivity and energy efficiency for sustainable factory operation.
