Oil-free scroll air compressor is a kind of equipment that utilizes the principle of scroll movement to compress gases, which is especially suitable for applications that require very high air quality, such as medical, food processing, electronic manufacturing and other industries.

Minnuo on-site oil-free scroll compressed air systems are more than just low-noise air compressors, with built-in air treatment equipment, they can even be placed at the production site to provide the highest efficiency compressed air, helping you save energy and costs.



Product Advantages

• No need to add any oil medium in the working process.
• Rotary compression structure continuous movement without reciprocation
• Vortex compression continuous work without useless work.
• Zero emission, green environmental protection
• Low noise, mute environmental protection
• Low power consumption, energy saving and environmental protection

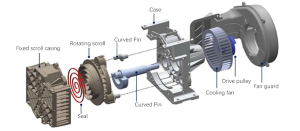

Internal structure diagram

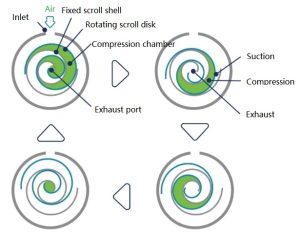

Oil-free scroll compressor working principle

A compression chamber is created between a rotating scroll disk and a fixed scroll housing.

The continuously rotating scroll disk draws in air from the air inlet and transports it to the center of the scroll housing, where it is gradually compressed into smaller areas.

The compressed air is fed directly into the center discharge of the compressor.

The discharge pressure is realized by means of multi-stage compression, resulting in continuous suction and discharge.

Product Parameters

Model	Motor output power KW	Power	Control	Rated pressure  Mpa	Exhaust volume m³/ min	Noise  db(A)	Interface Size	Size (L*W*H) mm	Weight
RS-2A-8	2.2	3N 380V 50HZ	Pressure sensitive	0.8	0.24	63	G1/2	560*600*800	145
RS-3A-8	3.7			0.8	0.4	63	G1/2	560*600*800	170
RS-7A-8	7.5			0.8	0.8	63	G1	1180*760*1250	340
RS-11A-8	11(3.7*3)			0.8	1.2	64	G1	1180*760*1690	500
RS-15A-8	15(3.7*4)			0.8	1.6	64	G1	1500*1180*1250	650
RS-18A-8	18.5(3.7*5)			0.8	2.0	65	G1.1/4	1500*1180*1690	810
RS-22A-8	22 (3.7*6)			0.8	2.4	65	G1.1/2	1500*1180*1690	878
RS-50A-8	5.5/7.5	3N 380V 50HZ		0.8	0.6	63	G1/2	680*640*935	167
RS-110A-8	11(5.5*2)/15			0.8	1.2	64	G1	1180*760*1250	417
RS-165A-8	16.5(5.5*3)22			0.8	1.8	64	G1	1180*760*1690	556
RS-220A-8	22(5.5*4)/30			0.8	2.4	65	G1.1/4	1500*1180*1250	728
